MUD VOLCANOES OF THE WORLD: CLASSIFICATIONS, ACTIVITIES AND ENVIRONMENTAL HAZARD (INFORMATIONAL-ANALYTICAL REVIEW)

Baloglanov E.E. 1 Abbasov O.R. 1 Akhundov R.V. 1
1 Institute of Geology and Geophysics of the National Academy of Sciences
There are 2508 mud volcanoes and mud volcanic manifestations in 42 geographical regions of the world. The territory of Eastern Azerbaijan and the adjacent water area of ??the Southern Caspian Basin characterize by the widest spread of mud volcanoes on a global scale. The total number of mud volcanoes and mud volcanic manifestations in Azerbaijan is 353 (154 of them are marine). In comparison with other geographical regions, mud volcanoes of Azerbaijan also distinguish by the number of eruptions and daily gryphon, sopka and salse activity. In addition, Azerbaijan is a unique country, because all types of mud volcanoes were registered here. From this point of view, mud volcanoes of Azerbaijan provide favorable conditions for research of their activity and environmental hazard. Related to the daily activity of mud volcanoes, the composition and quantity of the emitted gases into the atmosphere, as well as mineralization degree and chemical types of waters, and the organic and element composition of the breccias were studied. The zones with high anomalous-radioactive background on the crater area of the volcanoes were revealed and the reasons for their occurrence were explained. It was stablished an associative relationship between the increasing of gamma level and the concentration of uranium for the breccia samples selected from the area has high radioactive background. In connection with the environmental hazard, a comparative analysis was performed on chemical and radioactive indicators of water and breccia samples, respectively, with norms for drinking water and an average concentration of elements for sedimentary rocks.
There are 2508 mud volcanoes and mud volcanic manifestations in 42 geographical regions of the world. The territory of Eastern Azerbaijan and the adjacent water area of ??the Southern Caspian Basin characterize by the widest spread of mud volcanoes on a global scale. The total number of mud volcanoes and mud volcanic manifestations in Azerbaijan is 353 (154 of them are marine). In comparison with other geographical regions, mud volcanoes of Azerbaijan also distinguish by the number of eruptions and daily gryphon, sopka and salse activity. In addition, Azerbaijan is a unique country, because all types of mud volcanoes were registered here. From this point of view, mud volcanoes of Azerbaijan provide favorable conditions for research of their activity and environmental hazard. Related to the daily activity of mud volcanoes, the composition and quantity of the emitted gases into the atmosphere, as well as mineralization degree and chemical types of waters, and the organic and element composition of the breccias were studied. The zones with high anomalous-radioactive background on the crater area of the volcanoes were revealed and the reasons for their occurrence were explained. It was stablished an associative relationship between the increasing of gamma level and the concentration of uranium for the breccia samples selected from the area has high radioactive background. In connection with the environmental hazard, a comparative analysis was performed on chemical and radioactive indicators of water and breccia samples, respectively, with norms for drinking water and an average concentration of elements for sedimentary rocks.
mud volcano
distribution area
classification
activity
environment
hazard
1. Abbasov O.R. About Paleogene-Miocene combustible shales of Gobustan // Proceedings of geology institute. 2005. Issue 33, pp. 10-15.
2. Abbasov O.R. The geochemical characteristic of combustible shales of Paleogene-Miocene in Gobustan // The Second International Scientific Conference of Young Scientists and Students “New directions of investigations in the Earth Sciences”. Baku, 2007, pp. 8.
3. Abbasov O.R. Geological and geochemical features of combustible slates of Gobustan (Azerbaijan) and their forecast inventories // Bulletin of the Atyrau Institute of oil and gas. 2008. Vol 2, issue 14, pp. 22-29.
4. Abbasov O.R. Regularities of extension combustible schists in Oligocene-Miocene sediments of Gobustan // The National Committee of Geophysicists of Azerbaijan. 2010. Issue 1-2, pp. 47-49.
5. Abbasov O.R. Possible resources of Gobustan fields and combustible manifestations // Azerbaijan Oil Industry. 2010. Issue 5, pp. 59-62.
6. Abbasov O.R., Baloglanov E.E., Huseynov A.R., Akhundov R.V. Hydrocarbon potential of Baku Archipelago deep deposits by data of mud volcanoes ejects // Proceeding of the 1st International Conference “Ultra deep hydrocarbon potential: future energy resources – reality and predication”. Baku, 2012, pp. 137-139.
7. Abbasov O.R., Ibadzadeh A.D., Mammadova A.N. Hydrocarbon generation potential of the deeper sediments of Azerbaijan // Integrated approach for unlocking hydrocarbon resources. Baku, 2012, pp. 48.
8. Abbasov O.R., Mammadova A.N. Evolution of ideas about combustible shales of Azerbaijan and their practical importance // Proceedings the Sciences of Earth, Azerbaijan National Academy of Sciences. 2012. Issue 3, pp. 12-16.
9. Abbasov O.R., Mamedova A.N., Huseynov A.R., Baloglanov E.E. Some new data of geochemical researches of combustible slates of Azerbaijan // Geology, geophysics and development of oil and gas fields. 2013. Issue 2, pp. 32-35.
10. Abbasov O.R., Akhundov R.V. The comparative analysis of mud volcanoes of Azerbaijan and Ukraine (an example of Gobustan region and the Kerch Peninsula) // Proceeding of the 5th International Scientific Conference of Young Scientists and Students “Fundamental and applied geological science: achievements, prospects, problems and ways of their solutions”. Baku, November 14-16, 2013, pp. 16-18.
11. Abbasov O.R., Akhundov R.V. Petroleum potential of Paleogene and Miocene deposits in Gobustan based on oil shale products of mud volcanoes // Baku World Forum of Young Scientists. Baku, 2014, pp. 27-28.
12. Abbasov O.R. Oil Shale of Azerbaijan: Geology, Geochemistry and Probable Reserves // IJRSSET – International Journal of Research Studies in Science, Engineering and Technology. 2015. Vol. 2, issue 10, pp. 31-37.
13. Abbasov O.R., Ibadzade A.J., Khasaeva A.B., Guseynov A.R., Akhundov R.V., Baloglanov E.E. Hydrocarbonic potential of the deep-shipped deposits of Gobustan (Azerbaijan) (on the basis of combustible slates and oil-bearing breeds, emissions of mud volcanoes) // Resursovosproizvodyashchy, low-waste and nature protection technologies of development of a subsoil. Bishkek, Kyrgyzstan, 2015, pp. 342-443.
14. Abbasov O.R., Baloglanov E.E., Akhundov R.V. Geochemical analysis of oil shale and oil-bearing rocks of Gobustan mud volcanoes // 6th International Conference of Young Scientists and Students “Multidisciplinary approach to solving problems of geology and geophysics”. Baku, October 12-15, 2015, pp. 118-119.
15. Abbasov O.R., Baloglanov E.E., Akhundov R.V. Organic compounds in ejected rocks of mud volcanoes as geological and geochemical indicators: a study from Shamakhi-Gobustan region (Azerbaijan) // International Multidissiplinar Forum “Academic Science Week-2015”. Baku, 2015, pp. 3-4.
16. Abbasov O.R. Geological and geochemical properties of oil shale in Azerbaijan and petroleum potential of deep-seated Eocene-Miocene deposits // European Journal of Natural History. 2016. Issue 2, pp. 31-40.
17. Abbasov O.R. Distribution regularities of oil shale in Azerbaijan // ISJ Theoretical & Applied Science. 2016. Vol. 3, issue 35, pp. 165-171. Doi: http://dx.doi.org/10.15863/TAS.2016.03.35.28
18. Abbasov O.R. Genesis and organic geochemistry of oil shale in Eastern Azerbaijan // Proceedings of the VII Youth Scientific Conference “Ideas and Innovations in Geosciences”. Kyiv, Ukraine, October 25-27, 2017, pp. 33.
19. Abbasov O.R. Distribution regularities and geochemistry of oil shales in Azerbaijan // Mineral resources of Ukraine. 2017. Issue 2, pp. 22-30.
20. Aliyev Ad.A., Ibadzadeh A.J., Abbasov O.R., Mammadova A.N. The dynamics of genesis of organic substance in oil shales // Azerbaijan Oil Industry. 2014. Issue 07-08, pp. 3-7.
21. Aliyev Ad.A., Guliyev I.S., Dadashov F.H., Rahmanov R.R. Atlas of world mud volcanoes. Baku: Publishing house “Nafta-Press”, “Sandro Teti Editore”, 2015, 321 pp.
22. Aliyev Adil, Abbasov Orhan. Organic geochemical characteristics of oil shale in Azerbaijan // The 36th National and the 3rd International Geosciences Congress, Tehran, Iran, February 25-27, 2018, pp. 1-10.
23. Aliyev Ad.A., Abbasov O.R. Mamedova A.N. Geochemistry of oil shale in Azerbaijan // ISJ Theoretical & Applied Science. 2018. Vol. 05, issue 61, pp. 315-322. Doi: https://dx.doi.org/10.15863/TAS.2018.05.61.52
24. Aslanov B.S., Khuduzadeh A.I. The role of neotectonic processes in the formation of hydrocarbon deposits in the territory of Azerbaijan // STB Karotazhnik. Tver, 2017. Issue 8, pp. 57-66.
25. Babayev F.R., Abbasov O.R., Mamedova A.N., Huseynov A.R. Studying of bitumens of Azerbaijan // Actual problems of humanitarian and natural sciences. 2013. Vol. 7, issue 54, pp. 40-42.
26. Bagirov E., Nadirov R., Lerche I. Earthquakes, mud volcano eruptions, and fracture formation hazards in the South Caspian Basin: statistical inferences from the historical record. Energy Exploration and Exploitation. 1996. Vol. 14, issue 6, pp. 585-606.
27. Baloglanov E.E., Abbasov O.R., Akhundov R.V. Gas-Hydrochemical Indicators of Mud Volcanism Communication with Seismicity // XXIII International Scientific Conference of Students, Post-Graduates and Young Scientists “Lomonosov-2016”. Moscow, Aprel 11-15, 2016, pp. 1.
28. Baloglanov E.E., Abbasov O.R., Akhundov R.V., Nuruyev I.M. Daily gryphon-salse activity of mud volcanoes and geo-ecological risk (based on researches, conducted in Gaynarja mud volcano) // Water resources, hydraulic facilities and environment. Baku, 2017, pp. 512-517.
29. Baloglanov E.E., Abbasov O.R., Akhundov R.V., Huseynov A.R., Abbasov K.A., Nuruyev I.M. Daily activity of mud volcanoes and geoecological risk: a case from Gaynarja mud volcano, Azerbaijan // European Journal of Natural History. 2017. Issue 4, pp. 22-27.
30. Baloglanov E.E., Abbasov O.R., Akhundov R.V., Abbasov K.A., Nuruyev I.M. Impact of seismic activity on fluid (gas and water) and temperature regimes of mud volcanoes in Shamakhi-Gobustan region (Azerbaijan) // Proceedings of the VII Youth Scientific Conference “Ideas and Innovations in Geosciences”. Kyiv, Ukraine, October 25-27, 2017, pp. 31.
31. Baloglanov E.E., Abbasov O.R., Akhundov R.V., Hasanov E.H., Abbasov K.A., Nuruyev I.M. Anomalies in gas-hydrogeochemical indicators of mud volcanoes in connection with seismic activity: on the basis of mud volcanoes data in Shamakhi-Gobustan (Azerbaijan) and Sakhalin Island (Russia) // ISJ Theoretical & Applied Science. 2018. Vol. 1, issue 57, pp. 176-185. Doi: https://dx.doi.org/10.15863/TAS.2018.01.57.32
32. Baloglanov E.E., Abbasov O.R., Akhundov R.V. Hydrochemical changes in mud volcanoes: a precursor of earthquakes // XXV International Scientific Conference of Students, Post-Graduates and Young Scientists “Lomonosov-2018”. Moscow, Aprel 9-13, 2018, pp. 1.
33. Bashirov O.Kh. The mineralogical investigation of the materials of the Keyreki mud volcano // Azerbaijan Geologist. 2016. Issue 20, pp. 87-90.
34. Bashirov O.Kh. Some new data of mineralogy of Shikzarli mud volcano // Proceedings of the VII Youth Scientific Conference “Ideas and Innovations in Geosciences”. Kyiv, Ukraine, October 25-27, 2017, pp. 47.
35. Cothray J.E., Aliyev Ad.A. Delineation of Mud Volcano Complex, Sacrificial Mudflows, Slump Blocks, and Shallow Gas Reservoirs Offshore Azerbaijan. Offshore Technology Conference. Houston, Texas, USA, May 1-4, 2000, pp. 28.
36. Dadashev F.G. Hydrocarbon gases of mud volcanoes in Azerbaijan. Baku: Azerneshr, 1963. 65 pp.
37. Grigoryev N.A. Distribution of chemical elements in the upper part of the continental crust. Ekaterinburg: UrO RAN. 2009. 382 pp.
38. Fuad Nabiyev and Orhan Abbasov. Geochemical study of ejected rocks (oil shale and oil-bearing rocks) of mud volcanoes in Shamakhi-Gobustan region (Azerbaijan) as indicators of hydrocarbon generation and accumulation // European Geosciences Union General Assembly 2018, Geophysical Research Abstracts. Vol. 20, EGU2018-12244. Vienna, Austria, April 8-13, 2018.
39. Hasanov E.H. Characteristics of the choice of favorable engineering and geological conditions for fulfilling of the prospecting and exploration surveys // Young Researcher. Baku, 2016. Volume II, issue 2, pp. 73-77.
40. Hasanov E.H., Yolchiyev M.R. Report on prospecting and engineering and surveys of the Garabakh field // Integrated Engineering Exploration Production. 2017. 218 pp.
41. Hasanov E.H., Khuduzadeh A.I. Assessment of perspective areas in the north Absheron uplift zone of the South Caspian basin and geological and geochemical features of the upper part of the sections: a study from the Garabakh field // ISJ Theoretical & Applied Science. 2018. Vol. 04, issue 60, pp. 50-57. Doi: https://dx.doi.org/10.15863/TAS.2018.04.60.12
42. Ibadzadeh A.J., Abbasov O.R. Geochemistry of combustible shales in Gobustan and use of their pyrolysis products // Proceedings of Geology Institute. 2008. Issue 36, pp. 58-67.
43. Khuduzadeh A.I., Akhundov Sh.Kh., Mustafaev Y.R., Gurbanov M.F. Lithological-facies and paleotectonic criterias in the formation of hydrocarbon deposits of the Paleogene complex sediments in the oil and gas bearing region Kura and Gabirri interfluves // Azerbaijan Oil Industry. Baku, 2015. Issue 12, pp. 6-12.
44. Khuduzadeh A.I. Formation and oil-gas content of thrust type structures in north-west part of Absheron archipelago // Azerbaijan Oil Industry. Baku, 2016. Issue 4, pp. 13-18.
45. Khuduzadeh A.I., Akhundov Sh.Kh., Аskerov I.N., Аkhundov S.Sh. Lithophatic features, structural and paleotectonic analysis of Upper Cretaceous sediments in the middle Kura basin based on new data (on the example of the Kura and Gabirri interfluves) // Proceedings of the Azerbaijan National Academy of Sciences, Earth Sciences. Baku, 2017. Issue 1-2, pp. 37-44.
46. Matthieu Dupuis, Francis Odonne, Orxan Abbasov, Teymur Fiqarov, Anthony Dofal, Patrice Imbert, Bruno C. Vendeville. The Ayaz-Akhtarma mud volcano: an actively growing mud pie in the foothills of the Greater Caucasus, Azerbaijan // 13th International Conference on Gas in Marine Sediments. Troms?, Norway, 2016.
47. Mellors R., Kilb D., Aliyev A., Gasanov A., Yetirmishli G. Correlations between earthquakes and large mud volcano eruptions // Journal of Geophysical Research. 2007. Vol. 112. B04304. doi:10.1029/2006JB004489. pp. 1-11.
48. Milkov A.V., Sassen R., Apanasovich T.V., Dadashev F.G. Global gas flux from mud volcanoes: a significant source of fossil methane in the atmosphere and the ocean. Geophysical Research Letters. 2003. Vol. 30, issue 2, pp. 1037.
49. Newton R.S., Cunningham R.C., Schubert C.E. Mud volcanoes and pockmarks: seafloor engineering hazards or geologic curiosities? Proceedings – Annual Offshore Technology Conference. Houston, USA, May 5-8, 1980, vol. 1, pp. 425-435.
50. Orhan Rafael Abbasov. Oil shale of Azerbaijan: geology, geochemistry and probable reserves // International Journal of Research Studies in Science, Engineering and Technology. 2015. Vol. 2, issue 9, pp. 31-37.
51. Orhan R and Abbasov. Organic compounds in ejected rocks of mud volcanoes as geological and geochemical indicators of source rock: a study of oil shale in Shamakhi-Gobustan region (Azerbaijan) // International Journal of Current Advanced Research. 2016. Vol. 5, issue 7, pp. 1042-1046.
52. Orhan Abbasov and Adil Aliyev. Geodynamic stresses and eruption paroxysm of mud volcanoes // European Geosciences Union General Assembly 2018, Geophysical Research Abstracts. Vol. 20, EGU2018-6467. Vienna, Austria, April 8-13, 2018.
53. Venikova A.L., Obzhirov A.I., Abbasov O.R., Baloglanov E.E., Akhundov R.V. Mud volcanism and seismicity (based on a comparative analysis of geochemical data of mud volcanoes located on Sakhalin Island of the Russian Federation and Shamakhi-Gobustan District of Azerbaijan) // 1st International Scientific Conference of Young Scientists and Specialists “The role of multidisciplinary approach in solution of actual problems of fundamental and applied sciences (Earth, technical and chemical)”. Baku, October 15-16, 2014, pp. 5-8.
54. Yershov V.V., Nikitenko O.A., Perstneva Y.A., Baloglanov E.E., Abbasov O.R. Geochemical studies of products related to the activity of mud volcanoes in Azerbaijan // V All-Russian youth geological conference “Geology, geoecology and resource potential of the Urals and adjacent territories”. Ufa, September 25-30, 2017, pp. 117-123.

Mud volcanoes provide very important and useful information about complex geological and geochemical processes occurring on inaccessible depths for prospecting and exploration wells, and also play an important role in the evaluation of hydrocarbon deposits of great depths [1-4, 6, 7, 9, 11, 13-16, 18, 20, 22-24, 33, 34, 38, 41-46, 48, 50-52, 54]. One of the most important areas of the study of mud volcanism is associated with eruptions and daily activity which forms an environmental hazard. Various methods and approaches have been considered by many scientists [26-34, 35, 39, 40, 47, 49, 53] in studying this problem.

Distribution areas of mud volcanoes in the world and their classifications

There are 2508 mud volcanoes and mud volcanic manifestations within the 42 geographical areas in the world, as well as Alpine-Himalayan, Pacific and Central Asian folding zones, in the deep-water zones of the Caspian, Black and Mediterranean seas and on the passive margins of the continents [21] (Fig. 1).

Quantitatively, mud volcanic areas may conditionally be divided into the largest (more than 100 volcanoes), large (50 to 100 volcanoes), moderate (10 to 50 volcanoes), and small ones (less than 10 volcanoes) [21]. Taking it as a basis, the largest mud volcanic areas are: Azerbaijan and western slope of South Caspian Basin, Eastern Mediterranean (Mediterranean Ridge, Nile delta), Trinidad and its eastern offshore area, China, the USA (Gulf of Mexico and its coast, Barbados and Lesser Antilles Margin; large areas are: Gulf of Cadiz, Italy, Romania, Black sea, Russia (Taman peninsula and Western Kuban), Pakistan, Myanmar, Indonesia, Columbia, Costa Rica; moderate mud volcanic regions are: Western Mediterranean, Turkmenistan and eastern slope of South Caspian, Ukraine (Kerch peninsula), Iran, India, Japan, Malaysia, Georgia, Nigeria, Papua–New Guinea, New Zealand, Nicaragua, Panama, Venezuela; small areas are: Central Mediterranean, Albania, South Sakhalin, Alaska, the Philippines, Namibia, SAR, Canada, Mexico, Ecuador and Peru (Table 1).

The South Caspian Basin a zone of subsidence with a thick sedimentary stratum (more than 30 km) and a wide spread of mud volcanism [21]. The largest number of mud volcanoes, including the biggest, most frequently erupting ones and in general, all their known types (Table 2) are located in Eastern Azerbaijan and the adjacent water area of the South Caspian. It is in accordance with these factors that Azerbaijan is considered to be the “Motherland of mud volcanoes”. There are 353 mud volcanoes and their manifestations on the territory of the country (Table 3), 199 of which are terrestrial [21].

balog1.tif

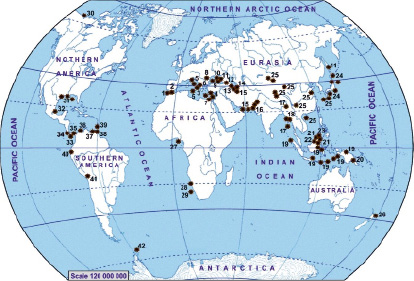

Fig. 1. Geographical location of the areas of mud volcanoes over the world: 1 – Gulf of Cadiz; 2 – Western Mediterranean (Alboran Sea); 3 – Central Mediterranean (Calabrian Arc); 4 – Eastern Mediterranean; 5 – Italy; 6 – Albania; 7 – Egypt; 8 – Romania; 9 – Black Sea; 10 – Ukraine; 11 – Russia; 12 – Georgia; 13 – Azerbaijan; 14 – Turkmenistan; 15 – Iran; 16 – Pakistan; 17 – India; 18 – Myanmar; 19 – Indonesia; 20 – Papua New Guinea; 21 – Malaysia; 22 – Brunei; 23 – Philippines; 24 – Japan; 25 – China; 26 – New Zealand; 27 – Nigeria; 28 – Namibia; 29 – South Africa; 30 – Canada; 31 – USA; 32 – Mexico; 33 – Costa Rica; 34 – Nicaragua; 35 – Panama; 36 – Columbia; 37 – Venezuela; 38 – Trinidad and Tobago; 39 – Barbados and Lesser Antilles Margin; 40 – Ecuador; 41 – Peru; 42 – Antractica

Mud volcanic areas and environmental hazard

The territory of Azerbaijan has a very complex tectonic structure and active seismogeodynamic properties [5, 8, 10, 12, 17, 19, 21, 25, 27-31]. In this regard, about 5-6 eruptions were recorded in the territory of the republic recent years (Table 4). The eruption of the mud volcano is accompanied by a powerful explosion, deep cracks extending for several kilometers, a 300-350 m high flame (with the predominance of carbon, the eruption occurs without flame) and the release of a large volume of mud volcanic breccia onto the Earth’s surface. The amount of organic matter and chemical elements of volcanic products exceeds the average statistical norms for sedimentary rocks, and this factor disrupts the natural balance of the environment. The gryphon and salse activity of mud volcanoes is accompanied by the release of gas, highly mineralized water, mud-water mixture, and in some cases, a large amount of oil. As a result, saline soils, unique volcanic landscapes, as well as oil-impregnated zones form in the mud volcanic and adjoining areas. Such landscapes are rare from the geochemical point of view and have a negative impact on the living organisms that depend on each other [27-32].

Unlike the areas of mud volcanoes spreading around the world, the eastern territory of Azerbaijan is characterized by their widest distribution (Table 1), as well as by the presence of all existing types of mud volcanoes (Table 3). This factor creates favorable conditions for the study of mud volcanism and the problems associated with it. From this point of view, Azerbaijan is a unique country for studying the impact of mud volcanoes on the environment. Taking into account the facts mentioned above, the mud volcanoes of Azerbaijan were chosen as an object of study of volcanic activity and environmental hazard.

Table 1

The distribution areas of mud volcanoes in the world

Geographical area

Number of mud volcano and mud volcanic manifestation

Geographical area

Number of mud volcano and mud volcanic manifestation

Gulf of Cadiz

50

Malaysia

29

Western Mediterranean

10

Brunei

7

Central Mediterranean

6

The Philippines

3

Eastern Mediterranean

230

Papua-New Guinea

20

Italy

71

New Zealand

12

Albania

3

Nigeria

13

Egypt

160

Namibia

1

Romania

66

South Africa

8

Black Sea

70

Canada

3

Ukraine

43

The USA

139

Russia

46

Mexico

1

Georgia

13

Nicaragua

11

Azerbaijan

353

Costa-Rica

59

Turkmenistan

48

Panama

40

Iran

25

Columbia

50

Pakistan

52

Venezuela

18

India

12

Trinidad and Tobago

202

China

200

Barbados and Lesser Antillas Margin

250

Japan

26

Ecuador

2

Myanmar

52

Peru

2

Indonesia

97

Antarctica

5

Total: 2508

Terrestrial: 1107

Marine: 1401



Table 2

Classification of mud volcanoes and mud volcanic manifestations

Mud volcano

Mud volcanic manifestation

Terrestrial

Marine

Morphological type

Crater type

Activity type

Mud-water mixture emitting (with oil films)

Oil emitting

Active

Extinct (more than 100 years)

Buried

Richly oil emitted

Island

Underwater

Cone-shaped

Dome-shaped

Ridgy

Plateau-shaped

Plano-convex

Shield-shaped

Deep-seated

Caldera-shaped

Erupting periodically

Characterized by gryphon-salsa activity



Table 3

Statistical indicators of mud volcanoes and mud volcanic manifestations in Azerbaijan by geological regions

Geological region

Number of mud volcano

Number of mud volcanic

manifestation

Total

Pre-Caspian-Guba

2

5

7

Shamakhi-Gobustan

86

34

120

Absheron

45

24

69

Lower Kura

25

8

33

Baku archipelago

85

7

92

Deep part of the South Caspian

32

-

32

Total

277

76

353



Table 4

Mud volcano eruptions recorded within petroleum regions in Azerbaijan (during 1810-2018)

Volcano name

Eruption date

Volcano name

Eruption date

Pre-Caspian-Guba region

Lower Kura region

Zarat-deniz

1953

Kalamaddin

1872

Akhtarmaardy

1990

Absheron peninsula

Akhtarma-Pashaly

1948, 1962, 1969, 1982 (twice), 1986, 2013, 2018

Kechaldag

2000

Kichik Harami

1912

Uchtepe

1967, 1986, 1992, 1998, 2002, 2004, 2005

Hamamdag

1938, 1947, 1967, 1984, 1996

Beyukdag

1921, 1922

Agzybir

1964, 1978, 2002

Zikh Pilpilesi

1993 (twice)

Bendovan

1932, 1989

Keireki

1824, 1830, 1865, 1882, 1885, 1902, 1915, 1952, 1953, 1957, 1964, 1966, 1968, 1989, 1991, 2001, 2002, 2014, 2017

Kursengi

1965

Durovdag

1953

Duzdag

1941

Bozdag-Geokmaly

1926, 1965, 2001

Oil salse

1882

Bozdag-Gobu

1827, 1894, 1937, 1953, 1957, 1974, 1986, 1987, 1999

Neftchala Pilpilesi

1947 (twice)

Bozdag-Gyuzdek

1839, 1867, 1902, 1969, 1986, 1988, 1995, 2003, 2009

Dovshandag

2003

Saryncha

1936, 1976

Baku archipelago

Gyzyltepe

1914 (twice)

Zenbil Island

1961, 1995

Akhtarma-Puta

1923, 1933, 1950

Khare-Zire

Island

1810, 1857, 1859, 1886, 1940, 1947, 1959, 1960, 1962, 1974, 1993, 1997, 2006

Lockbatan

1829, 1864, 1887, 1890, 1900, 1904, 1915, 1918, 1923, 1926, 1933, 1935, 1938, 1941, 1954, 1959, 1964, 1972, 1977, 1980, 1990, 2001, 2010, 2012, 2017

Otmanbozdag

1854, 1904, 1922, 1951, 1965, 1985, 1994, 2004, 2017

Gil Island

1810, 1859, 1860, 1895, 1896, 1913, 1926, 1937, 1960, 1962

Absheron archipelago

Garasu Island

1876 (twice), 1923, 1977, 1993

Absheron shoal

1888

Balygly shoal

1868, 1913

Buzovna Pilpilesi

1892, 1915, 1923, 1950, 1953 (twice), 2001

Chigil Island

1967

Sabail shoal

1907, 1915, 1970

Palchyg Pilpilesi

1935, 1950

Sengi-Mugan

Island

1903, 1923, 1932, 1933, 2002, 2008

Dashly Island

1920, 1945

Neft Dashlary

1904, 1949, 1951, 1957

Mugan-deniz shoal

1942, 1957

Shoal “1906”

1906

Shoal “1908”

1908

Chigil-deniz shoal

1861,1927 (twice),

1928, 1939, 1950, 1959, 2001

Shoal “1933”

1933

Shoal “1960”

1960

Yanan-Tava shoal

1813, 1825, 1843, 1868

Bahar-deniz shoal

1876, 1912, 1917, 1921, 1925, 1941, 1958, 1963, 1984

Kapaz

1980

Shamakhy-Gobustan region

Damirchi

1958, 1969, 1971, 2008

Agnohur

1927, 1940, 1948, 1976, 1986

Zeiva (Basgal)

1926

Cheildag (west)

1970

Kyurdamich

1971

Cheildag (east)

1870, 1957, 1968, 1970, 2004

Gizmeydan

1987, 2001

Davalidag (east)

1975

Gasymkend

1993

Dashmardan

1866, 1954, 1976, 1986, 2011

Jeirly

1951, 1983, 2001

Shekikhan (west)

1988, 1989 (twice), 2001, 2004, 2006, 2010, 2017

Hajily

1970

Shekikhan (east)

1989, 2006

Melikchobanly

1926, 1967, 1977

Gotur

1989, 2001, 2004, 2005

Gushchu

1913, 1917, 1924, 1941, 1952, 1954, 1958, 1960, 1965, 1968, 1986, 1992, 2008, 2018

Toragay

1841, 1901, 1924, 1932, 1947, 1950, 1984, 1985, 1987, 1988, 2018 (twice)

Kyolany

1845, 1962, 1969

Beyuk Kyanizadag

1950, 1996

Kichik Maraza

1848, 1970, 1986

Durandag

1960, 1968, 1986, 2001, 2004

Bozaakhtarma

1902, 1969, 1970, 1987, 2017

Agtirme

1913, 1971 (twice), 1985, 1988, 1989, 1998, 2000

Shikhzarli

1844, 1848, 1868, 1872, 1902, 1927, 1929, 1939, 1944, 1946, 1949, 1955, 1969, 1974, 1980, 1986, 1987, 1991, 1992, 1997, 2004, 2011, 2013, 2017

Garabujag (Hajivelieri)

1954, 1963, 2001

Jengi

1851,1873

Solakhay

1949, 1989 (twice), 2001

Garyja

1970, 1987, 2003, 2007, 2011, 2017

Garakyura

1928, 1951

Shorsulu

1986

Oyug

1988 (twice)

Sheytanud

1975

Ayrantoken

1964, 1969, 1977, 1988, 1990, 2004, 2008

Chapylmysh

1929, 1933, 1973, 1984, 1989, 2001, 2010

Goturdag

1926, 1959, 1966, 1970, 1977, 1987

Ayazakhtarma

1926, 1969, 1973 (twice), 1985, 1989, 2001, 2005, 2006, 2007

Dilyangyaz

1902, 1912, 1951

Nardaranakhtarma

1948, 1970, 1972, 1982, 1984,

Dashgil

1882, 1886, 1908, 1926, 1958, 2001

Suleymanakhtarma

1986, 1996, 2001, 2004

Bahar

1853,1859, 1885, 1886, 1911, 1926, 1967, 1992

Alat Pilpilesi

(Bala Bahar)

1909, 1953, 1962



The Kichik Maraza volcano is located 38 km south-east of Shamakhi (40 °30'36.37"N, 49 ° 1'55.21"E), to the north of Shikhzarli volcano, at the hill summit of 600 m in absolute height. The hill has steep western and southern slopes and gentle northern and eastern slopes surrounded with shallow gorges and scours. An area covered with breccia is 79 ha. The mentioned volcano is placed at the Miocene sediments and confined to the northwestern pericline of the Mushkemir anticline. An outflow tongues, 40-60 m long and 5-10 m wide, are seen on the slopes. The Kichik Maraza volcano crater field is rather vast, with numerous gryphons and 0.5 m to 14 m high sopkas. Some of them are distinguished by an abundant emission of gas, water and mud with oil films. The Kichik Maraza volcano first eruption was recorded in 1848, the last one in 1986 (Table 4). The volcano is surrounded by closely adjoining agricultural and cattle breeding areas (Fig. 2 (a) and 2 (b)).

The Duzdag mud volcano is located 600 m of the Salyan-Neftchala highway (39 °22'53.76"N, 49 ° 8'46.64"E), 4 km of Khylly village. Volcanic cone, 0.6 km in diameter and 18 m in relative height, is clearly distinguished over the surrounding flat plain. The volcano is situated on the same named anticline composed of upper Pliocene and Quaternary sediments. Mudvolcanic manifestations are confined to the western regional faulting having an amplitude of 400 m and passing through the southwestern limb of the fold. A several active gryphons and salses emitting gas, muddy water, some with oil, occur on the Duzdag volcano. The last eruption of the mud volcano was recorded in 1941 (Table 4). Currently, the northern, northeastern and southwestern parts of the volcano are surrounded by an artificial lake used for agricultural and fishing purposes (Fig. 3 (a) and 3 (b)). Various phase volcanic products, ejecting from the active gryphons and salses of the mud volcano directly flow to the lake (Fig. 3 (c)).

balog2.tif

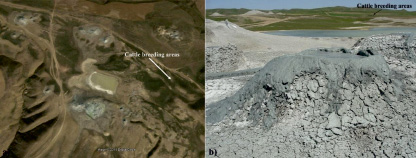

Fig. 2. Satellite image (a) and photo of the crater field (b) of the Kichik Maraza mud volcano

balog3.tif

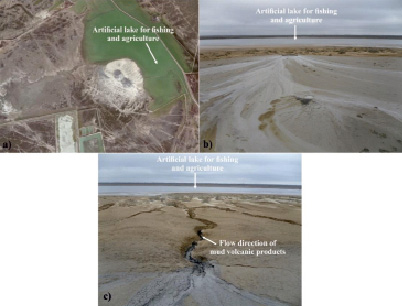

Fig. 3. The Duzdag mud volcano: (a) satellite image, (b) active salse on the crater field, (c) flows of volcanic products (water and mud mixture) towards the lake

balog4.tif

Fig. 4. Active gryphon and salse of the Kechaldag mud volcano located in close proximity to the Jeiranbatan water reservoir

balog5.tif

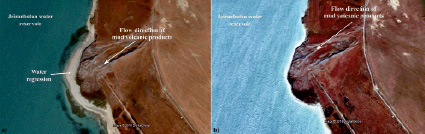

Fig. 5. Satellite image of the Kechaldag mud volcano: (a) – 2016, (b) – 2018

balog6.tif

Fig. 6. Active gryphon and salses located on the crater field of the Gaynarja mud volcano

The Kechaldag mud volcano of 114 m in absolute height, is located 17 km northwest of Baku (40 °29'34.49"N, 49 °42'10.66"E), in southeastern coast of Jeiranbatan reservoir. Fragmental product of the volcano covers an area of 1000x600 m overlapping the sediments of Middle and Upper Eocene, Oligocene and Miocene which are exposed on the earth surface. Two eruptive centres of the volcano are confined to the most elevated parts of the locality (141.1 and 97.9 m). The largest, southeastern centre, towering to 44 m above surrounding locality, has 350 long and 250 m wide crater, bordered with 1.2 m high rampart (Fig. 4). The second eruptive centre located at a distance of 675 m northwest from the first centre, has a small crater. The Kechaldag volcano is confined to the northwestern pericline of a large Kechaldag-Zigilpiri anticline. The fold is complicated by longitudinal rupture with which a volcano is related. The last registered eruption of the volcano (Table 4) was related to the construction works carried out in 2000 on its slope [21].

Depends on regular changes in the water level in the Jeiranbatan water reservoir, the products of the Kechaldag mud volcano directly contact the water of the reservoir (Fig. 5 (a) and 5 (b)).

The Gaynarja mud volcano is located 8-10 km southwest of Shabran district (41 °9'16.31"N, 48 °59'2.31"E). Occuring on the Miocenic-Pontian sediments it is expressed as a hill of 60 m in relative height. A 100 m diameter crater field has many mud cones and gryphones up to 2-3 m in height and 1.5-2.0 m in base diameter, and salses of 3.0-3.5 m in diameter (Fig. 6). Gaynarja volcano is confined to the same name northeasterly trending fold which is the central link of Talabi-Zaratdeniz anticlinal belt. The fold is asymmetric with a steep (55-600) northeastern limb and gently sloping (40-500) southwestern limb. The two longitudinal dislocations of the thrust pattern have been traced on the crest. In recent years there have been no any eruptions of the Gaynarja volcano (Table 4) [29].

The artificial reduction of the minimum distance between the Takhtakorpu water reservoir and the volcano reached a peak (Fig. 7 (a) and 7 (b)). Thus, the boundaries of the reservoir were expanded without taking into account the minimum distance between the mud volcano and the basin of reservoir. Most of the crater field of the volcano, with the exception of the northeastern part, was buried underwater [28] (Fig. 7 (b). As a result, the products of the mud volcano, as in the case of the Kecaldag volcano, directly contact the water of the reservoir.

Materials and methods of research

The study were conducted on 5 active mud volcanoes (1 – Kichik Maraza, 2 – Duzdag, 3 – Kechaldag, 4 – Gaynarja, 5 – Otmanbozdag (Fig. 8)) of Shamakhi-Gobustan, Lower Kura, Absheron and Pre-Caspian-Guba regions. The visual, satellite, geological, geochemical and radioactive surveys, as well as laboratory analyzes were performed. 10 water and sopka breccia samples were collected on each volcano, and their chemical composition was determined at the Institute of Geology and Geophysics using the “S8 TIGER Series 2 WDXRF” spectrometer and the “Agilent 7700 Series ICP-MS” mass spectrometer. The organic properties of rocks (oil shales) found among mud volcanic breccias were determined in the process of two-stage pyrolysis. Radiometric measurements were carried out on multidirectional profiles passing through the crater field using radiometers “CPП-88M” and “Inspektor-1000”. A gamma spectrometric analysis of water and breccia samples was conducted to study the anomalous nature of radioactivity. In addition, based on the eruption and daily activity of some volcanoes, an approximate calculation was made to estimate the amount of gases released into the atmosphere [27-29, 39-41]. According to the data obtained, the extrapolation was carried out and the annual emission of total gas for the mud volcanoes of Azerbaijan was calculated.

Results of research and their discussion

The gas composition of the studied mud volcanoes mainly consist of CH4, CO2 and N2 (Table 5).

Table 5

Composition and average value of gases emitted from the studied mud volcanoes

Mud volcano

Emitted gas ( %)

CH4

CO2

N2

Kichik Maraza

95.38

1.20

1.04

Duzdag

95.73

0.53

1.74

Kechaldag

95.31

0.64

2.3

Gaynarja

92.73

5.64

1.08



balog6.tif

Fig. 6. Active gryphon and salses located on the crater field of the Gaynarja mud volcano

balog7.tif

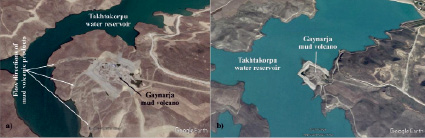

Fig. 7. Satellite image of the Gaynarja mud volcano: (a) – 2013, (b) – 2018

balog8.tif

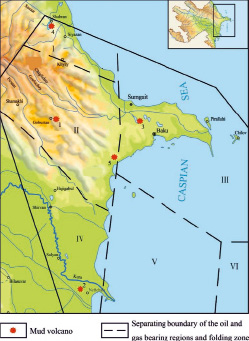

Fig. 8. Location map of the studied mud volcanoes (1 – Kichik Maraza, 2 – Duzdag, 3 – Kechaldag, 4 – Gaynarja, 5 – Otmanbozdag) within the oil and gas bearing regions and folding zone: I – Pre-Caspian-Guba, II – Shamakhi-Gobustan, III – Absheron, IV – Lower Kura, V – Baku archipelago, VI – folding zone in the deep South Caspian

According to calculations, 69.12 m3 of gas emitted from one active gryphon or salse of mud volcano (an average of 12 in each volcano (Table 4)) into the atmosphere, the total volume of which is 25228.8 m3 per year. Taking into account the fact that the most part (about 70 %) of total mud volcanoes in Azerbaijan is characterized by active gryphon and salse activity, the annual release of gas into the atmosphere is about 6231513.6 m3. Due to the fact that the volume of emitted volcanic gas mainly depends on the seismic events occur in the region [27-32], the annual total amount of gas may increase in proportion to the volcanic activity.

The calculations on the amount of gas burned during the eruption were carried out on the basis of two phases of paroxysmal events (12:20:40 and 14:18:04) that occurred on February 6, 2017 on the mud volcano Othmanbozdag (Table 4, 40 °14'25.00"N, 49 °30'26.21"E) which the largest and highest mud volcano in the world (relative altitude 404 m) (Fig. 9 (а) and (b)) located in the Absheron region of Azerbaijan. Calculations were carried out in accordance with statistical data on recorded eruptions of the mud volcano by the Republican Center of Seismological Service under the National Academy of Sciences of Azerbaijan, according to the following formula:

bal01.wmf

where h – height of the flame (the first phase is 310 m, the second is 370 m), d – diameter of the flame (the first phase is 8.5 m, the second is 12 m), T – duration of flame (the first phase is 3.5 minutes, the second is 5 minutes), t – time of complete combustion of the flame (according to [36] – 0.33 minutes). During the first phase of the paroxysm, the amount of released gas was approximately 186476.2 m3, in the second – 633709.1 m3. Taking into account the fact that at least 5 eruptions are recorded annually in the territory of Azerbaijan, and their above-mentioned parameters correspond to the eruption of Otmanbozdag, it can be concluded like the amount of ejected gas as a result of all these eruptions is 4,100,926.5 m3.

The average amount of the total mineralization of the waters carried to the Earth’s surface by mud volcanoes: Kichik Maraza – 10 g/l; Duzdag – 47.3 g/l, Kechaldag – 9.6 g/l, Gaynarja – 63.8 g/l. The mineralization of the Gaynarja mud volcano is much higher in comparison with other volcanoes. The estimates allow to conclude that the mineralization value in mud volcanoes of Azerbaijan increases from north to south. Classification types of studied volcanic waters for the Pre-Caspian-Guba and Absheron regions – sodium hydrocarbonate and calcium hypochlorite, Shamakhi-Gobustan region – hydrocarbonate sodium, Lower Kura region – calcium hypochlorite and sodium hydrocarbonate.

SO42- and K+, Ca2+, Mg2+ in the chemical composition of the water samples taken from the Kehcaldag mud volcano are below the average standards for drinking water, but Na+, Cl- and HCO3- are higher. The Ph values are corresponding to the norm. Na+, K+, Ca2+, Mg2+, Cl-, HCO3- in the chemical composition of the water samples taken from the Gaynarja mud volcano are significantly exceed the standards, but SO42- is below. The Ph indicators do not exceed the standards (Fig. 10).

The results of a comparative analysis of the microelement composition of breccia samples from the sopkas of the studied mud volcanoes show that Li, V, Zn, Rb, La, Ce, Nd, Pb, Th in Kichik Maraza, V, Cr, Ni, Sr in Duzdag, Li, V, Cr, Zn, Sr, Pb in Kechaldag sharply exceed the norm of the average value for sedimentary rocks [37] (Fig. 11).

The amount of organic matter in the composition of oil shales, found among the solids products of the studied mud volcanoes, ranges from 9.5 to 12.65 %. In the process of pyrolysis, it was established that the amount of hydrocarbons (gases) is insignificant in such rocks, and most of the organic matter is in the form of coal (Table 6).

balog9.tif

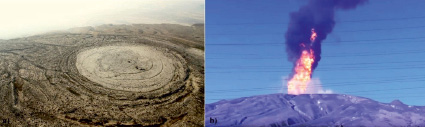

Fig. 9. The Otmanbozdag mud volcano: (a) – image from a helicopter, (b) – eruption recorded on February 6, 2017

balog10.tif

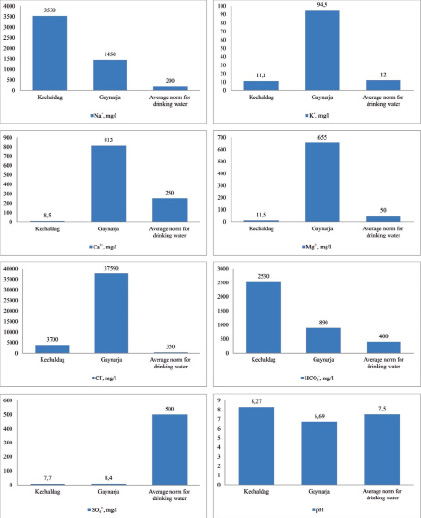

Fig. 10. Comparisons between the chemical composition of water samples taken from the studied mud volcanoes and the average norm for drinking water

Table 6

The results of the two-stage pyrolysis of rock samples taken from the Gaynarja mud volcano

Sample

Organic matter, %

500-550 °C

800-850 °C

Oil

Gas

Oil

Gas

1

12.2

-

2.43

-

2.67

2

12.65

-

4.99

-

1.88

3

9.5

-

5.24

-

1.20



balog11.wmf

balog12.wmf

balog13.wmf

balog14.wmf

Fig. 11. Comparative analysis between the microelement composition of breccia samples taken from the studied mud volcanoes and average values for sedimentary rock [37] (ppm)

balog15.tif

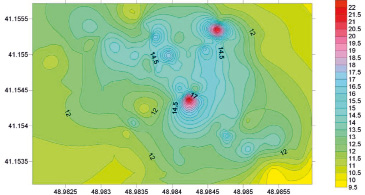

Fig. 12. Distribution map of the radioactivity in the crater field of the Gaynarja mud volcano

Table 7

The content of radionuclides in the water samples from gryphons and salses of the Gaynarja mud volcano

Radionuclide, Bk/l

Sample

Average concentration for drinking water Bk/l

1

2

3

K 40

25.6 ± 4.2

15.2 ± 1.4

16.6 ± 1.9

22.0

Ra 226

0.228 ± 0.054

0.154 ± 0.024

0.126 ± 0.028

0.5

Ra 228

0.138 ± 0.010

0.324 ± 0.050

0.644 ± 0.036

0.2

Rn 222

0.20 ± 0.12

0.18 ± 0.10

0.10 ± 0.06

120.0

U 235

0.0144 ± 0.0032

0.0064 ± 0.001

0.0120 ± 0.0016

3.0

U 238

0.312 ± 0.069

0.139 ± 0.021

0.261 ± 0.034

3.1



Table 8

Specific activity and content of radionuclides in the breccia samples of the Gaynarja mud volcano

Sample

Integral radioactivity

mR/h

Activity, Bk/kg

U, Bk/kg

Th, Bk/kg

К, Bk/kg

1

23

481.56

431.81

634.61

2

14-15

106.4

50.19

0.45

704.87

3

16-17

118.51

12.15

77.99

208.42

4

23

515.12

480.15

671.71



The radioactivity of the breccia on the crater field of the Gaynarja mud volcano is 9.5-23 mR/h. Lower values of radioactivity were recorded in the central, northern and northeastern parts of the volcano (Fig. 12). This can be explained by the presence of tectonic dislocations in these zones.

The amount of radionuclides (Ra 228 in two samples, K 40 in one sample) in water samples taken from the active gryphons and salses of Gaynarja mud volcano sharply exceeds the average concentration of radionuclides for drinking water. The concentration of radionuclides Ra 226, Rn 222, U 235 and U 238 is much lower than the norms (Table 7).

Radionuclides Ra 228 and Ra 222 were not detected in the breccia samples. Analyzed samples were selected in the zones of both weak and relatively high radioactivity. Thus, the average indicator of radioactivity of rocks ranges between 106.4 and 515.12 Bk/kg (Table 8). These indicators reflect the overall complex level of gamma rays, and depend on the amount of radionuclides in the rock composition. Exceeding the level of gamma rays in two rock samples can be explained by the presence of a uranium element in their composition. The amount of thorium does not exceed the mean value, and potassium is present in all volcanic rocks.

Conclusions

The content of gases released into the atmosphere as a result of the eruption and daily activity of mud volcanoes in Azerbaijan, mainly consist of CH4, N2 and CO2. The total amount of these gases per year is more than 10 300 000 m3, that CH4 dominates in concentration (more than 90 %). The obtained results show that volcanic gas emissions have a serious influence on the overall gas budget of the atmosphere.

The total level of mineralization in volcanic waters is high, on average more than 30 g/l. The classification types of these waters are sodium hydrocarbonate and calcium hypochlorite. Na+, K+, Ca2+, Mg2+, Cl-, HCO3- are significantly higher than the average allowable value for drinking water in some samples. The radionuclides Ra 228 and K 40 were found in the water samples that their concentration is also much higher than the norm for drinking water.

Some microelements, such as Cr, Ni, Sr, Pb and Th were found in the breccia composition of mud volcanoes, that their concentrations are significantly higher than the average value for sedimentary rocks. The amount of organic matter in the rocks, ejected by mud volcanoes, is more than 9 %. The results of pyrolysis show that the yield of hydrocarbons is insignificant, organic matter is most often in the form of coal.

Radioactive backgrounds on the crater field of the mud volcano were often increased, which is explained by tectonic dislocations in the internal structure of the volcano. An increase in the gamma level in some breccia samples selected in areas with a high radioactive background is associated with an increase in the concentration of uranium.

This work was supported by the Science Development Foundation under the President of the Republic of Azerbaijan – Grant № EIF/GAM-3-2014-6(21)-24/11/2.
